| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | Linsheng Auto II MaxM |
| 모델 번호: | LS-PAT-22+LS-RSK-1 |
| 최소 주문 수량: | 1개 |
| 가격: | USD59~USD299/PC |
| 포장 세부 사항: | 카튼 |
| 배달 시간: | 2주 동안요 |
| 지불 조건: | L/C (신용장), 전신환, 페이팔 |
| 공급 능력: | 1000pcs/월 |
| 전압: | DC24V | 맥스. 로드: | 10000N (푸시); 5500N (풀) |
|---|---|---|---|
| 맥스. 최대에 속도가 나세요. 로드: | 4mm/s | 맥스. 무부하에 속도가 나세요: | 14 밀리미터 / Ｓ |
| 뇌졸중: | 30mm-800mm | 수축된 길이: | 스트로크+210mm |
| IP 등급: | IP66 | 선택: | 신속 해제 |
| 제어 단위: | 24V, 15A, 원격 제어 1 액추에이터 UP/DOWN/STOP |

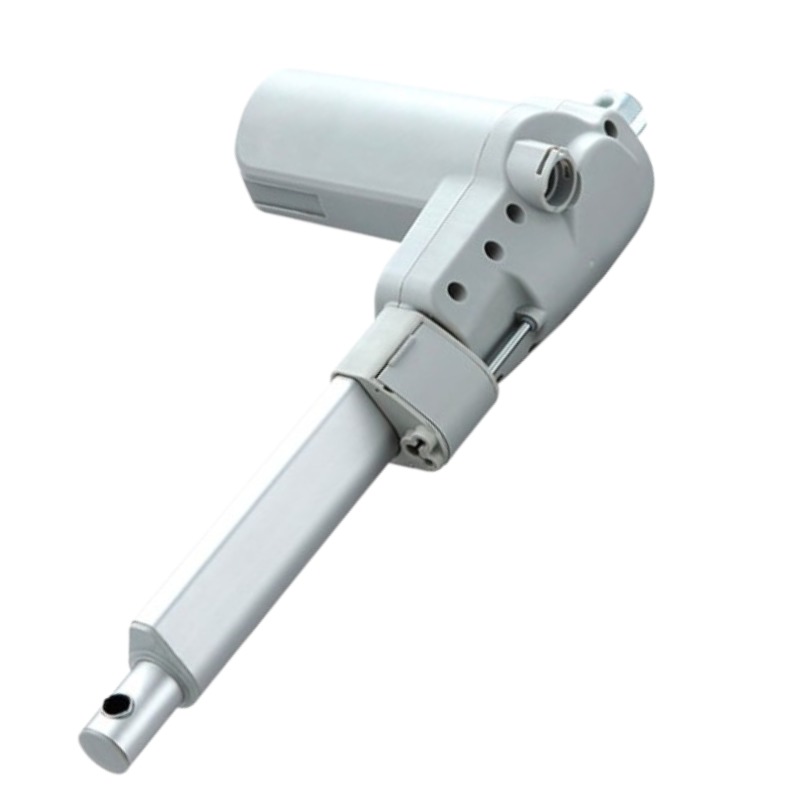

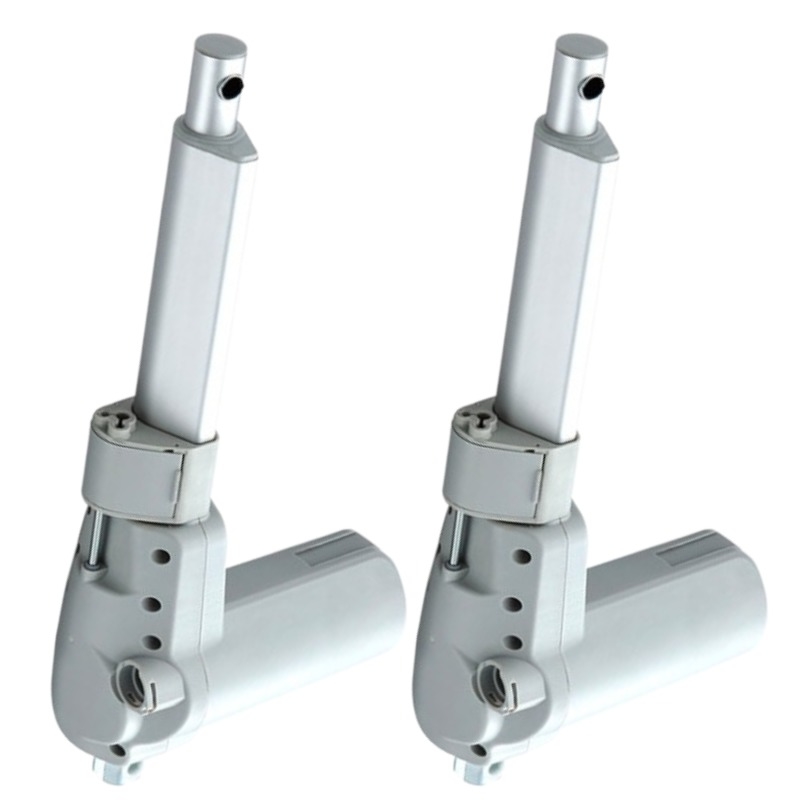

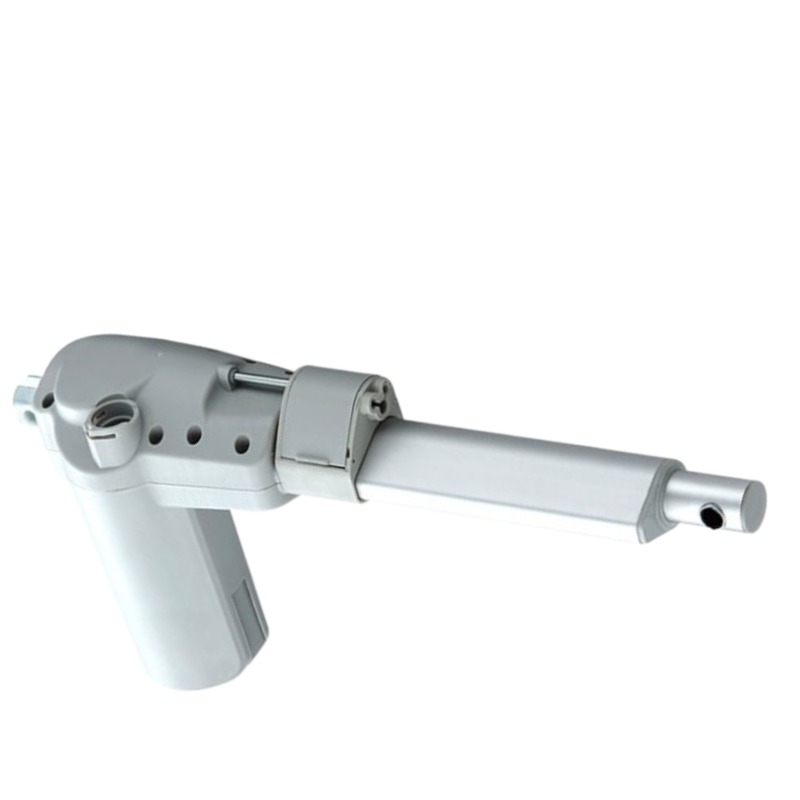

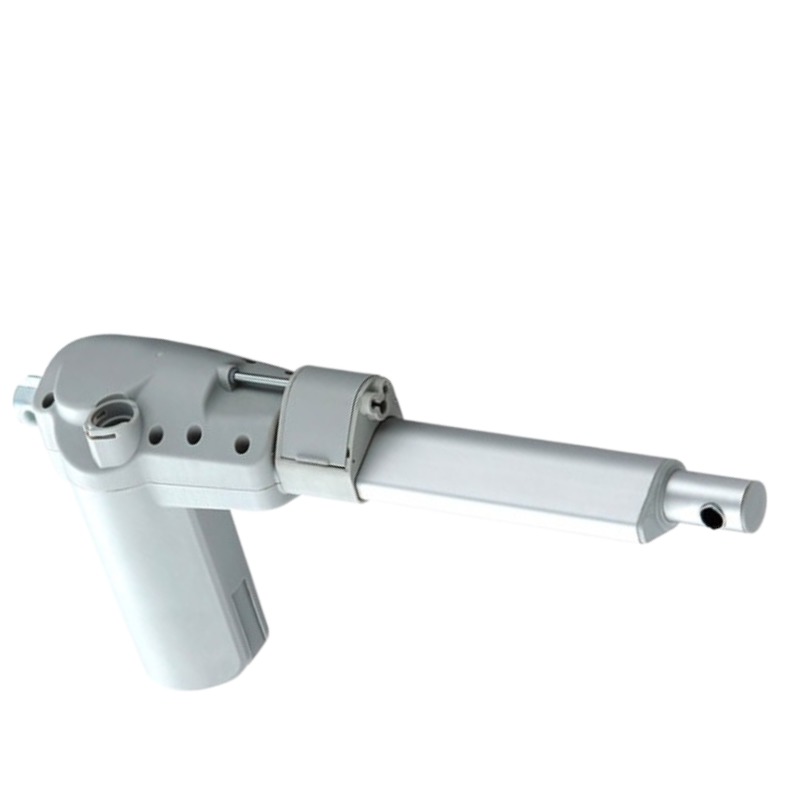

High-thrust 10000N IP66 Motorized Actuator Remote Control System 24VDC with Protection
Specially developed for motorized lifting bed applications, this 24VDC electric actuator combines strength, safety, and reliability. It supports stroke customization from 30mm to 800mm to meet diverse lifting needs. A key highlight is its quick release mechanism, which enables immediate lowering of the patient during emergencies or electrical outages, ensuring safety and peace of mind in critical moments. When used with Linsheng’s single control unit LS-RSK-1, the actuator offers smooth and user-friendly control.
Features:
High Force 10000N in Push
Quick Release Function Optional
2-key big remote, two colors are available
Specifications:
| Actuator LS-PAT-22: | |
| Voltage | 24V DC |
| Max. load force | 1000Kg(Push); 550Kg(Pull) |
| Max. speed at max. load | 4mm/s |
| Max. speed at no load | 14mm/s |
| Stroke | 30mm -800mm |

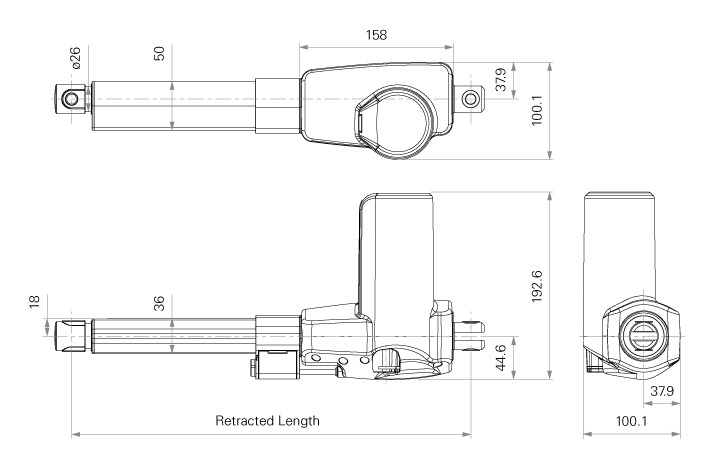

| Retracted length | ≥Stroke+210mm |
| IP rating | IP66 |
| Options | Quick release |

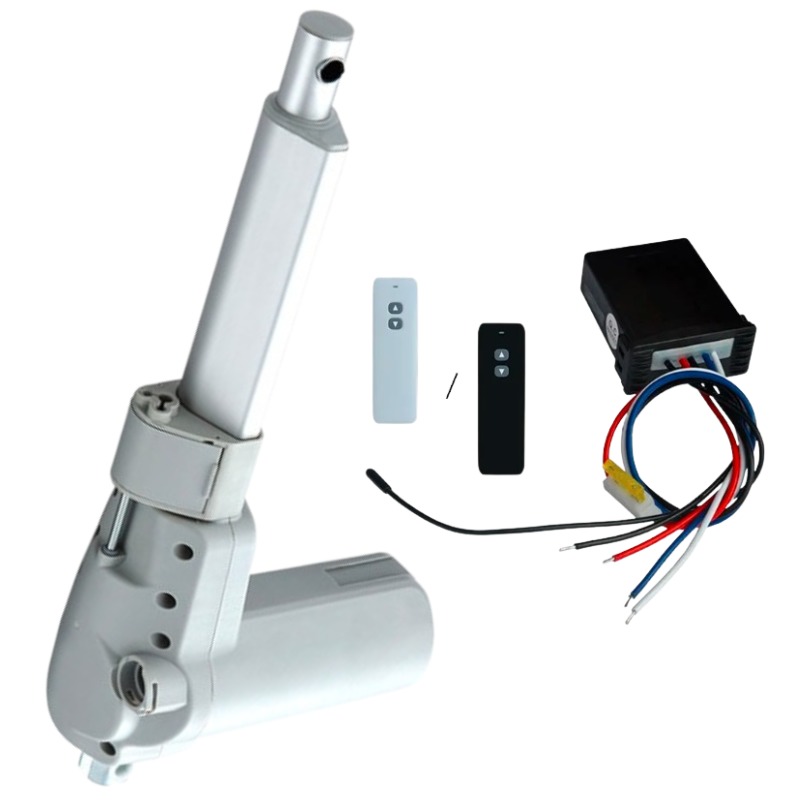

| Controller LS-RSK-1: | |
| Voltage | 24V DC |
| Max. current | 15A |
| New remote | Programmed ( 4 remote at most) |
| Protection | Built-in overloading safety protection |
| Remote range | 30 meters |
