품질은 모든 것입니다
| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | Linsheng Auto II MaxM |
| 모델 번호: | LS-PAT-45 |
| 최소 주문 수량: | 1개 |
| 가격: | 199-399 USD/PCS |
| 포장 세부 사항: | 카튼 |
| 배달 시간: | 2주 동안요 |
| 지불 조건: | L/C (신용장), 전신환, 페이팔 |
| 공급 능력: | 500pcs/월 |
| 볼트.: | DC12V/24V | <i>Max.</i> <b>최대.</b> <i>thrust</i> <b>추력</b>: | 2000N |
|---|---|---|---|
| 뇌졸중: | 9.8 "-23.5" | 수축된 길이: | ≥스트로크+150mm |
| 맥스. 최대에 속도가 나세요. 로드: | 0.5 "/s | 맥스. ree로드 속도: | 0.82 " |
| 리밋 스위치: | 안에 구축됩니다 | 신호 출력: | 홀 센서 |
| IP 등급: | IPX6 | 색상: | 은, 검정색 |

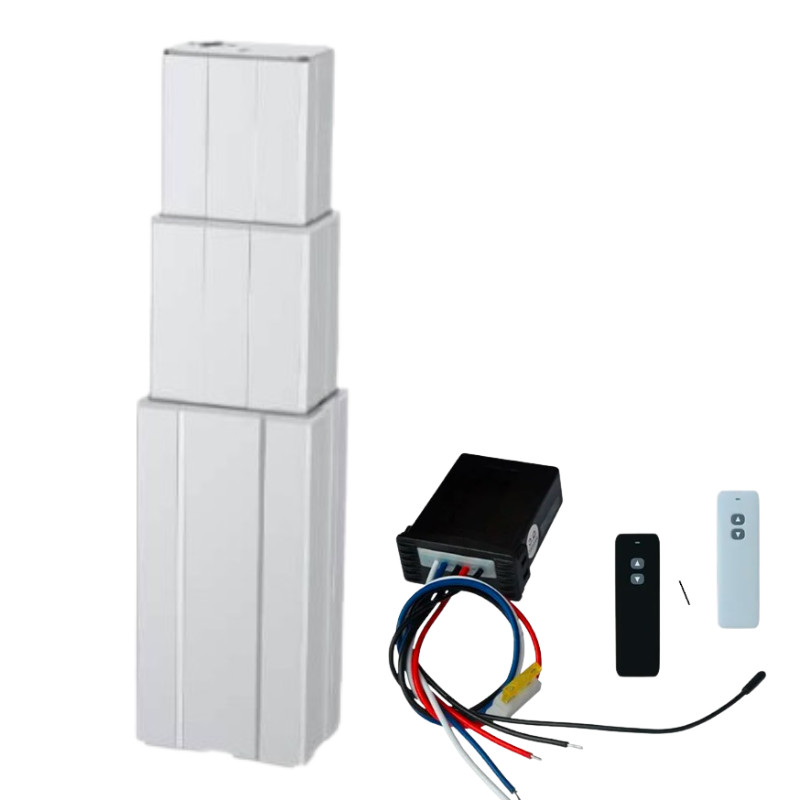

24VDC 200KG Max. Thrust 3 Stages Electric Lifting Column Remote Control System
Engineered for applications requiring tensile strength, this 3-stage telescopic lifting column is perfect for pull-driven uses like supporting suspended medical devices. Its triple-section housing ensures reliable and smooth motion, while its compact build accommodates diverse stroke lengths without compromising on stability.
Key Features:

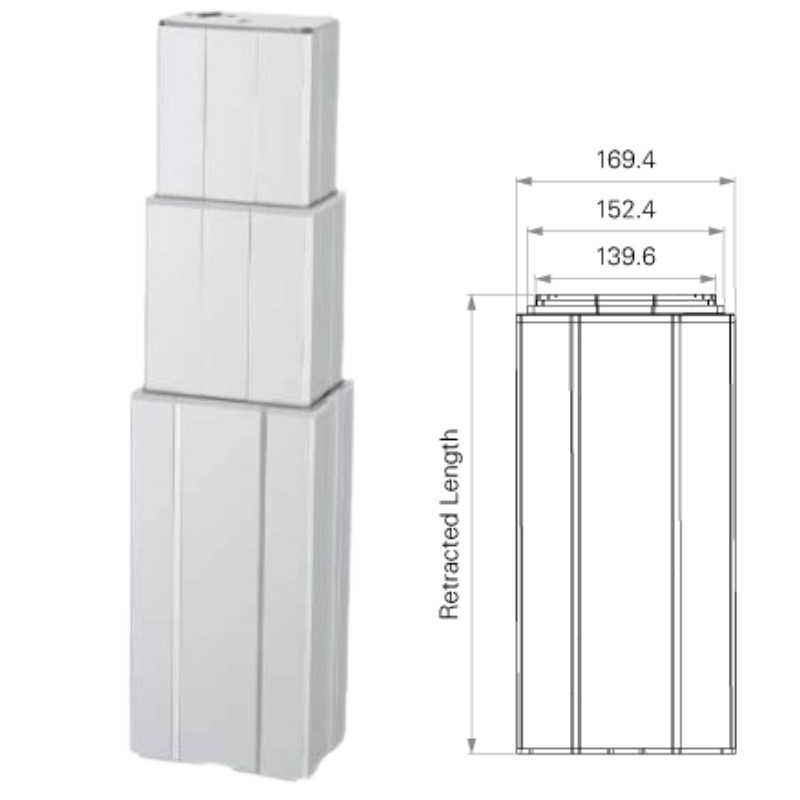

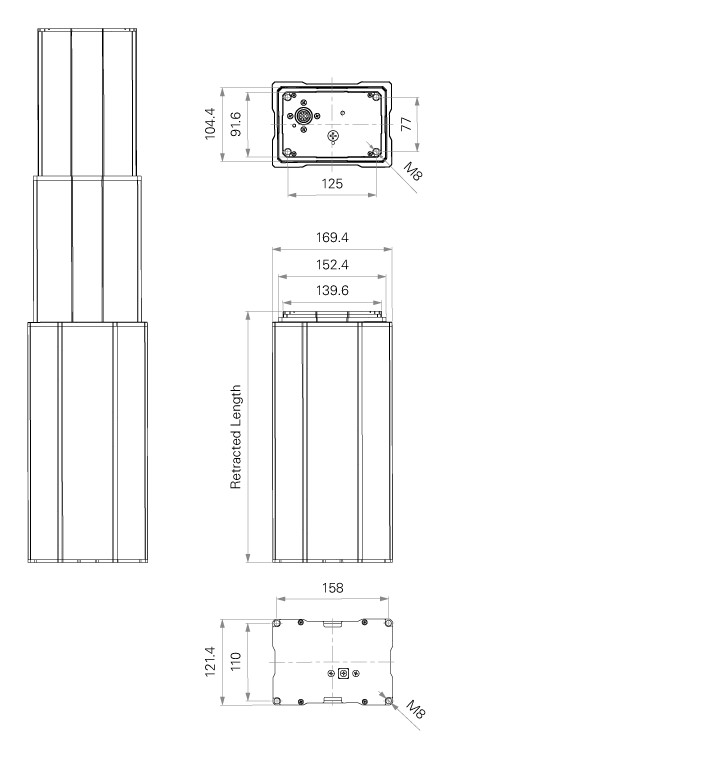

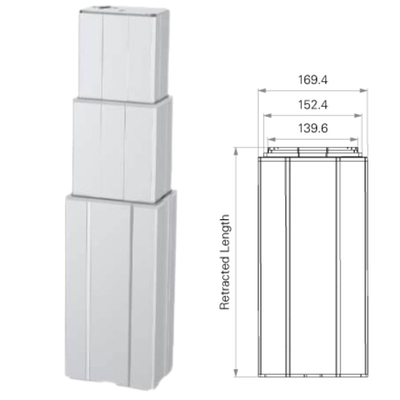

Rectangular design with external dimensions of 124.4 x 169.4 mm
Three-section column structure ensures smooth and reliable operation
Available in silver or black finishes
Commonly used in medical settings
Parameters:
| Model | LS-PAT-45 |
| Max. load force | 2000N / 200kg |
| Voltage | 24VDC / 12VDC |
| Speed | 12mm/s (rated load) ; 21mm/s (free load) |
| Retracted length | ≧ Stroke + 150mm |
| Stroke | 250mm - 600mm |
| Output signal (Option) | Hall sensors |
| Limit switches | Within |
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.Our products have strict quality control and all of them with CE, FCC that are certificated by SGS. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
